- Introduction
Welcome to our Cable Gland Components Product Catalog. Our range of cable glands is designed to ensure secure and reliable cable connections in various industrial applications, available in brass, metal, and stainless steel materials.
- Product Overview
Cable glands are essential for protecting and terminating electrical cables. Our products are built to withstand harsh environments and provide excellent mechanical and environmental protection. They are suitable for various applications, including industrial and commercial installations.
- Material Specifications

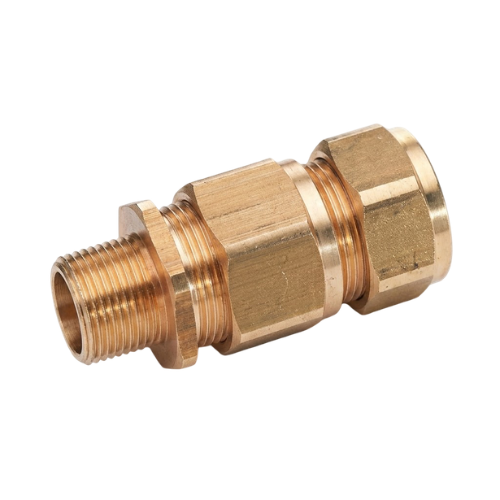

- Brass: Excellent corrosion resistance, durability, and conductivity.
- Metal (Aluminum): Lightweight, strong, and suitable for a variety of applications.

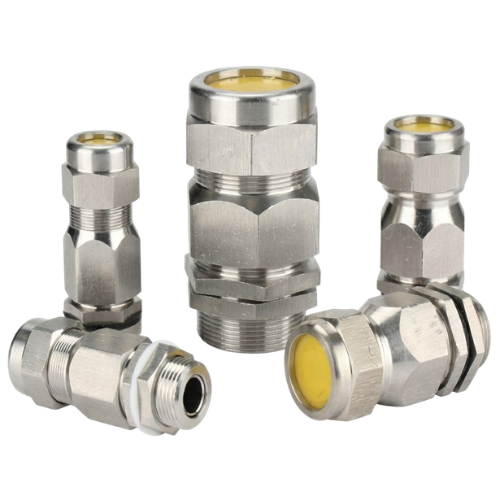

- Stainless Steel: High strength, corrosion resistance, and ideal for harsh environments.
- Product Range
|
Product Code
|
Material
|
Description
|
Protection Rating
|
Weight
|
|
CG-BRASS-001
|
Brass
|
Standard Cable Gland
|
IP68
|
0.05 kg
|
|
CG-METAL-002
|
Aluminum
|
Lightweight Cable Gland
|
IP67
|
0.03 kg
|
|
CG-SS-003
|
Stainless Steel
|
Heavy-Duty Cable Gland
|
IP68
|
0.1 kg
|
|
CG-BRASS-004
|
Brass
|
Brass Cable Gland with Seal
|
IP68
|
0.06 kg
|
|
CG-SS-005
|
Stainless Steel
|
Stainless Steel Cable Gland
|
IP69
|
0.12 kg
|
- Size Range
|
Product Code
|
Cable Diameter Range
|
Gland Size
|
Outer Diameter
|
Length
|
|
CG-BRASS-001
|
6 - 10 mm
|
M20
|
25 mm
|
40 mm
|
|
CG-METAL-002
|
10 - 14 mm
|
M25
|
30 mm
|
50 mm
|
|
CG-SS-003
|
14 - 18 mm
|
M32
|
35 mm
|
60 mm
|
|
CG-BRASS-004
|
18 - 22 mm
|
M40
|
40 mm
|
70 mm
|
|
CG-SS-005
|
22 - 28 mm
|
M50
|
45 mm
|
80 mm
|
- Application Areas
- Electrical Distribution Systems
- Industrial Automation
- Marine and Offshore Installations
- Renewable Energy Applications
- Telecommunications
- Installation Guidelines
- Preparation: Ensure the cable and gland are clean and free of dirt.
- Fitting: Follow the specific fitting instructions for each cable gland.
- Testing: Conduct insulation and continuity tests after installation.
- Safety Information
- Comply with local electrical safety regulations.
- Use appropriate personal protective equipment (PPE) during installation.
- Ensure correct torque settings to avoid damage to the gland and cable.
